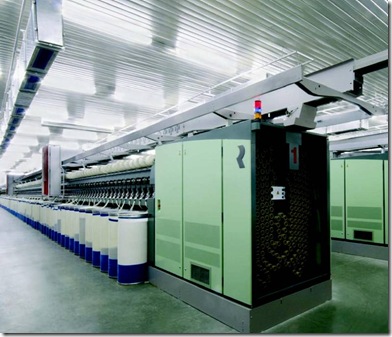

Rieter - Rotor Spinning Machine R 40

The newest R 40 is familiar to you, but it is still a new genera­tion of rotor spinning machines. Many characteristics and nu­merous sub-assemblies of the R 40 have been developed fur­ther and thus the productivity, quality and reliability have been considerably enhanced again. With impressive performance data, 500 spinning positions per machine, up to 350 m/min delivery, rotor speed of up to 160 000 rpm, up to 4 robots, the R 40 off ers maximum productivity.
In addition to well-proven techniques, the newest state of the art technologies have been incorporated for economic produc­tion. Energy, a steadily increasing cost factor in yarn manufac­turing, has been utilized economically and effi ciently. The R 40 energy consumption has been lowered signifi cantly by invest­ing in the most modern inverter technology, power-saving mo­tors and innovative bearing and lubrication techniques. The unique performance data guarantee the highest productivity and off er adequate potential for technical and technological developments in the future. The most modern techniques and technologies are implemented rigorously for the purposes of economic production: An objective which has received top pri­ority in development at Rieter.
With the R 40 rotor spinning machine and with Rieter as your partner, you are well equipped for the future.

PRODUCTIVITY
Reliability through process safety
With this newest model, the R 40 off ers up to 500 spinning posi­tions per machine. This makes it the longest spinning machine in the world. With the maximum machine length, delivery speeds of up to 270 m/min are possible. Using fewer spinning positions, 350 m/min can be obtained. Rotor speeds of up to 160 000 rpm, independent of the machine length, enable highest production rates. The new R 40 combines maximum productivity with mini­mum personnel requirements and high machine effi ciency.
COMPATIBLE MACHINE CONCEPT
The outstanding technical data of the R 40 are combined into
a modern machine concept. The fast robots of the R 40 with its modules, AEROpiecing, and the eXpert Piecing System XPS, form the back-bone of the R 40 automation.
Large units for material supply and package removal, a fast tube loader and interfaces for a central waste disposal systems make the R 40 complete.
INCREASED MACHINE RUNNING TIMES
The new R 40 uses frequency controlled inverters for all the cen­tral drives. Thus a lot change can be carried out entirely from the touch-screen of the machine control center. The production loss is reduced to a bare minimum. Long maintenance intervals and easy accessibility shorten the machine down-time and increase the productivity of the R 40.
SC-R SPINNING BOX, UNEQUALLED IN ITS POWER
The particular power of the SC-R spinning box lies in the box geometry and the various technology parts available for all mate­rials. Best values in yarn quality and productivity are achieved.
New rotors and nozzles have been developed through working together with leading man-made fi ber manufacturers. As a result it is possible, for example, to spin viscose fi bers from one manufacturer to a yarn count Ne 16 with 160 000 rpm and 350 m/min delivery speed. The core capability of the spinning box and the spinning elements are incorporated under one roof.
The costs under control
The economics of a machine are defi ned by the accrued costs per kg of yarn produced, i.e. investment costs, the raw materi­al supplied, energy and compressed air consumed, the climate control, along with building and personnel. With up to 500 spinning positions, the R 40 off ers the best space utilization with the largest sliver cans and package sizes.

SOLID LONG TERM INVESTMENT
In addition to the machine productivity, its service lifetime has a major eff ect on the economics. High value components from lead­ing suppliers, modern bearing and drive technology as well as a robust machine construction guarantee a long useful lifetime.
One Rieter development team is responsible exclusively for modifi cations of older machine generations. The newest devel­opments and techniques can thus also be transferred to older machine models. This maintains the competitiveness of Rieter rotor spinning machines and result in attractive resale values.
MORE POWER WITH LESS ENERGY
The new R 40 consumes less power energy thanks to the invert­er-controlled drives. The improved bearing technology of the spinning box and the drives result in energy savings of more than 5% compared with other rotor spinning machines.

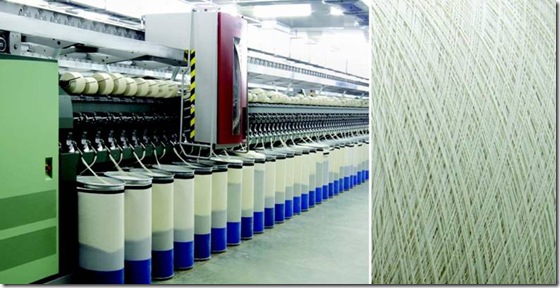

LARGE QUANTITIES OF MATERIAL AT LOW COST
The large can and package sizes reduce the costs for material handling and waste disposal. The spinning position gauge per­mits can sizes of up to 470 mm (181/2”) in a straight two-row arrangement for processing larger quantities of sliver material. The optimized winding geometry can produce package weights of up 6 kg (350 mm diameter) and reduces the operator re­quirements.
BEST RAW MATERIAL EXPLOITATION
The SC-R spinning box includes patented special features such as the fi xed fi ber support, the adjustable BYpass and the SPEED-pass. These features permit the production of high quality yarn values, even when utilizing lower raw material qualities.


Rapid reaction to market trends
The R 40 allows quick reaction to the market needs of custom­ers. A condition for a successful spinning mill is a high flexibil­ity and maximum machine availability. Various applications of yarns can be spun effi ciently on the R 40: regular and eff ect
yarns, weaving and knitting yarns, using diff erent raw materials and their blends.
CHANGE-OVER AT THE TOUCH OF A BUTTON
VARIOdraft permits draft, rotor speed, winding draft and yarn twist to be set comfortably at the central machine display. Additional functions such as the variable opening roller speed,

winding with the VSB traverse gear box, anti patterning and winding angle can now be set simply on the touch screen. The time it takes for a lot change is reduced to a minimum using the VARIOdraft functions.
OPTIMIZATION WITH THE MACHINE RUNNING
As a result of controlling all drives with frequency inverters the spinning parameters can also be optimized during production. This permits maximum productivity and flexibility.
OPTIMAL ADJUSTMENT TO RAW MATERIALS
The modern SC-R spinning box of the R 40 allows the manufac­turing of natural and man-made fi bers with high quality charac­teristics. A wide range of technology parts are available for the R 40. From a universal spinning elements for a broad applica­tion spectrum to special spinning elements for specifi c applica­tions with highest demands.
RETROFITTING ANTICIPATED IN THE CONCEPT
You can react flexibly to future economic developments with the R 40. For example, the personnel costs can be signifi cantly reduced with the optional installation of centralized supply and removal systems. The R 40 can be fi tted with a slub yarn device to produce yarns for fashion trends.

R 40 sets the standards
The R 40 produces high quality yarns with the proven SC-R spinning box. Modern yarn clearers check the quality continu­ously within very narrow limits. Production and quality data are collected with the SPIDERweb data collection system, ed­ited and then displayed on the central PC. This networking per­mits an immediate intervention for the smallest deviation from the quality standard.
NEWEST TECHNOLOGY FOR THE BEST RESULTS
The SC-R spinning box with the fi xed fi ber beard support, the BYpass, and the SPEEDpass, form the basis for the produc­tion of the best quality R 40 rotor yarns. The operation of yarn clearers assures the quality of the yarn produced. With 100% testing, including the piecings, a continuous high standard is guaranteed.

PIECING QUALITY EQUAL TO THE YARN
AEROpiecing, the revolutionary piecing technology in the R 40, allows the production of rotor yarns with short, invisible piec­ing. This continuously high yarn quality is a condition for the best running properties in subsequent processes and for high quality end products.
PIONEERING ROTOR CLEANING
Only a cleaned rotor can produce piecings of the same quality as the yarn. The patented rotor cleaning VARIOclean is clean­ing the rotor groove and the rotor walls reliably from all trash, dust and fi ber fi nish.
MORE CONSISTENT PACKAGE BUILD FOR DOWNSTREAM PROCESSING
The outstanding package build up with electronically meas­ured exact yarn length has a very low variability from package to package. When supplemented by REDIpac to defi ne the loca­tion of the yarn end, the customers profi t from optimal package handling, best running properties and an exact yarn length.


SPINNING BOX TECHNOLOGY
Highest performance for productivity and yarn quality
Over 30 years of experience with the development teams at SUssen and Rieter are invested in the SC-R spinning box. Con­sistently high yarn quality from spinning box to spinning box as well as optimization with respect to raw materials are only
a couple of the advantages.
SC-R SPINNING BOX WITH NEWEST TECHNOLOGY Technologically, the SC-R spinning box off ers unique charac­teristics. With the fi xed fi ber-beard support in the area of the sliver feed, a homogeneous sliver opening is guaranteed and achieves a yarn quality with minimal variability. The trash ex­traction is adjusted over the BYpass. Optimum trash elimina­tion, low fi ber breakage and the highest productivity are the recognizable characteristics of the BYpass.
In addition to the standard version of the channel insert, there is one with SPEEDpass available for spinning man-made fi bers and coarse cotton yarns. The SPEEDpass permits more air to be pulled through the fi ber channel. This enhances the fi ber sepa­ration at the opening rollers and the stretched transport of the fi bers into the rotor. Residue is removed from the material fl ow over the SPEEDpass. As a result, the rotor grooves, which im­pact the yarn quality decisively, remain clean.

EASILY REPLACED OPENING UNIT
An additional opening unit is available for the SC-R spinning box. Cotton and blended yarns of the highest quality are spun with the universal opening unit. The special opening unit has vital advantages for critical applications with man-made fi bers. Alterations in the region of fi ber separation allow, e.g., polyes­ter yarns for awning fabrics and abrasive base cloth to be spun to highest quality.
OPTIMIZED SPINNING GEOMETRY
In addition to the spinning box itself, its location in the ma­chine is important. This spinning geometry defi nes the spinning stability. The SC-R spinning box arrangement has been selected so, that an increased twist is applied between the TWISTstop and the rotor grooves resulting in increased yarn strength. The application of aggressive TWISTstop elements which roughen and aff ect the yarn surface negatively is seldom necessary. At the same ends down level, the yarn twist can be reduced for a higher productivity.
ENERGY-SAVING CLEAN ROTOR BEARING
The R 40 AERObearing has been developed further and has se­cure and stable running behavior; it holds the rotor in position and avoids any mechanical contact. There is no grease or oil
in the entire bearing area, i.e. no fi bers can get caught in the bearing. The air stream keeps this area of the bearing clean and cool. In reality, this results in extended cleaning intervals of the R 40.
Modern spinning elements for best results
The technology parts of the rotor spinning box defi ne the yarn characteristics. For the R 40, rotors, opening rollers and nozzles are available either for specially defi ned applications or as uni­versally applicable yarns.
NEW SURFACES FOR DRAW-OFF NOZZLES
Nozzles defi ne not only the yarn properties, but also the spin­ning behavior through their characteristics – smooth, with notches or with spirals – and through the material used and its surface fi nishes.
A new development is the innovative „nano4“ nozzle. The draw-off nozzle is fabricated from a special, very fi ne grained ceramic. This nano4 nozzle off ers productivity increases of more than 10% when processing viscose fi bers, due to an optimized friction behavior.
ENERGY-SAVING ROTOR DESIGN
The importance of energy costs as part of the production costs is increasing. A new generation of energy-saving rotors, termed X-Rotors, has an optimized external contour and reduces meas­urably the energy consumption in rotor operations. They con­sume 2-5 watts per rotor, i.e. 1-2% less energy compared to the previous rotor generation, under comparable working con­ditions.
OPTIMIZED VARIANTS FOR OPENING ROLLERS
There is a choice for opening rollers between the well-known solid-ring and the proven wire clothing. The R 40 off ers spe­cialized clothing for cotton, polyester, viscose and their blends for an optimal opening of the feed sliver to individual fi bers. In addition there are opening rollers which can be used universal­ly. Diff erent coatings ensure the best yarn values with a maxi­mum clothing service life.
SPECIAL OR UNIVERSAL CONFIGURATION
Based on the experience of our technologists, we have com­piled designer spinning elements for yarn applications such as denim or polyester yarns for the most advanced require­ments. Universally applicable spinning elements are available for standard applications. Various types of yarns for weaving
or knitting, e.g. viscose or cotton, can be spun nearly optimally with such a set of technology parts.

Simple to set and to operate
Labor intensive and long lot changing times are a thing of the past with the new R 40. The inverter technology which has been introduced makes it possible to perform all settings com­fortably and rapidly on the large touch-screen of the machine center. Specifi c requirements from the technicians, as well as large can and package sizes result in long machine running times without operator costs.
INVERTER-CONTROLLED CENTRAL DRIVES
Modern inverter technology has been implemented consistently into the new R 40. All drives can be set centrally and are infi - nitely variable. This standard sets new benchmarks for operat­ing the R 40. The easy settings of all machine parameters bring advantages at the start of a lot and during the optimization of currently-running production.
COMFORTABLE SETTINGS
All machine settings are made on the touch-screen of the ma­chine center. Opening roller speeds, winding angle, tension draft and anti patterning can be set comfortably and quickly at the machine center. The traversing stroke can be set for the VSB gear box on the machine display, and the package build adjusted to very diff erent yarn numbers.
SPECIFIC 3-STEP OPERATOR GUIDE
The visualization concept of the R 40 is well-thought out and guides the operator objectively. Personnel are called precisely to the R 40 with a three colored signal lamps at both machine ends. The settings of this signaling can be selected individually for the spinning mill organization. It acts as the initial indicator, e.g. for removing packages, repairing a robot or for a machine malfunction.
A lamp at the section indicates either a malfunction at a spin­ning position or a missing sliver. Two colored LED‘s at the in­dividual spinning position signal whether the robot could not piece up or whether a technical alarm exists.
LARGE YARN PACKAGES FOR CONTINUOUS OPERATION Packages of 6 kg or up to 350 mm in diameter set the standard. Then there are 18 1/2“ sliver cans in two straight rows, 20“ in three rows, or CUBIcans with, e.g. 30 kg capacity for longest running times.


FASTEST ROBOT
· Yarn-like piecing with AEROpiecing technology
· Extremely effi cient robots with the shortest piecing time
· Simplest robot setting with XPS
· Travel of the robot is optimized using the intelligent Drive System iDS
HIGHEST PRODUCTIVITY
· Machine lengths up to 500 rotors with rotor speeds up to 160 000 rpm
· Lower energy consumption through inverter technology and AERObearing at high productivity
· Minimal operator costs, using large can and package sizes of up to 6 kg (350 mm)
· Superb package build at delivery speeds up to 350 m/min maximum



BEST YARN QUALITY
· Best running performance resulting from the adjustable trash extraction with the BYpass
· Highest yarn quality from the fi xed fi ber-beard support and the SPEEDpass
· Broad spinning component palette for optimal yarn construc­tion
· Unequalled yarn quality with man-made fi bers with the special opener unit
MAXIMUM FLEXIBILITY
· Inverter operation for rapid lot change and optimization of quality and productivity while the machine is running
· 1, 2, 3 or 4 robots with service stations for eff ective robot service
· Flexible through the overlapping of the robot working areas, which can be set at the machine center
· Slub yarn, Multicount and Multitwist are possible, as an additional feature, at full machine length


ROBOT AUTOMATIZATION
Speed and precision for productivity and quality
Together with the spinning box, the robot is of central impor­tance. The yarn quality in the area of a piecing, as well as the machine effi ciency, and thus the productivity, are impacted by the robot.
SHORT STOP AT THE SPINNING POSITION
The R 40 robot conducts many individual tasks at the spinning position, e.g., changing full packages, placing empty tubes, cleaning the rotor, and feeding the yarn into the rotor. The stop at the spinning position only lasts 25 seconds. Modern robot control permits parallel module operation at maximum speed. The short cycle time makes it possible for the same number of robots to service more spinning positions without any reduction in machine effi ciency.
LASER GUIDED POSITIONING
Centering on the spinning position with millimeter precision cannot be guaranteed using mechanical methods over extend­ed periods. Using the new, high precision, laser-controlled centering on the new R 40, this is both reliable and possible without any wear occurring. The robot stops precisely at each spinning position. Reliably and accurately, the robots carry out the piecing operations.
EFFICIENT ROTOR CLEANING
An effi cient rotor cleaning is a precondition for optimum piecing quality. Potential sources of problems, such as, e.g. trash particles in the rotor grooves must be removed effi ciently. Rieter follows a new path with the patented VARIOclean rotor cleaning. A rotating cleaning head with two scrapers and three compressed air jets nozzles is brought into the rotor. The rotor groove is are cleaned out with the scrapers and, in addition, the rotor groove and the entire rotor wall is cleaned by compressed air. Clean rotors guarantee quality piecings and yarn quality.
SIMPLE SETTINGS WITH XPS
The conditions for an optimal piecing quality are set with VARIOclean and AEROpiecing.
Using XPS, the eXpert Piecing System, the robot is set up in an instant. The data for a lot change are transmitted from the ma­chine center to the robot. Only the fi ber material to be spun must be selected at the robot. For the remaining 6 parameters in the expert system, the robot refers back to the data base of thousands of stored robot settings. The XPS suggest settings for the 6 parameters and these can be accepted by pressing
a button. The robot then operates at high effi ciency and with yarn-like piecing quality. A possible fi ne tuning, such as the ad­justment of the twist or the mass, is carried out by simply ad­justing some of these 6 parameters.
PIECING QUALITY REMAINS THE SAME
The robot controls and monitors the piecing procedure and thus assures that the procedure remains the same. The innova­tive AEROpiecing concept which feeds the yarn tail of defi ned length into the rotor from pneumatic storage is the key to a consistently good piecing quality.
PROBLEM-FREE MAINTENANCE
The modular construction of the robot allows easy maintenance. Each module can be moved independently, manually or by using the robot control system. Making mechanical settings for the ro­bot, and the removal of any malfunctions is extremely simple,
and this success motivates the technicians to give their best performance. With simple malfunctions, the robot cycle is sim­ply stopped; the robot goes back to its initial position independ­ently and moves on to the next spinning position. The feedback from the R 40 technicians is overwhelmingly positive; based upon more than 1 500 R 40 robots which are running in the
fi eld. Rapid coordination and simple maintenance, successful re­moval of malfunctions are only a few of the advantages quoted.
LARGE GRAPHIC DISPLAY
All piecing parameters are shown clearly on the robot display. Robot effi ciency and further information can be called up quickly.


The successful R 40 machine concept is designed for high pro­ductivity with a maximum machine length.
MORE FLEXIBILITY WITH 4 ROBOTS
The R 40, with a length of up to 500 rotors can be equipped with up to 4 robots. Each robot is assigned to a certain posi­tion from the maintenance concept. All spinning positions are served by the remaining robots while one robot is in mainte­nance. There is no loss of effi ciency. The working area of the robots are assigned at the machine center and can overlap. The intelligent Drive System iDS off ers a further optimization. The machine center coordinates the robot travel area and thus opti­mizes the effi ciency of the entire machine.
RELIABLE AND SERVICE- FRIENDLY ELECTRONICS
The running speeds are monitored by the inverter and addition­ally by sensors mounted on the drive shafts. Any deviations are recognized immediately by this double monitoring system ar­rangement and the machine is stopped. Thus the production of inferior yarn quality is avoided.
EXTENDED CLEANING INTERVALS
Many improvements have been made to extend the cleaning in­tervals of the new R 40. These improvements save 1 to 2 clean­ing intervals annually and thus increase the productivity time signifi cantly.
· AERObearing, grease and oil free
· SC-R spinning box with the best self-cleaning
· Robots with the VARIOclean rotor cleaning
· Central lubrication feature
ENERGY CONSUMPTION
Maximum output with effi cient energy utilization
The increasing energy requirements world-wide are leading to steadily increasing costs. For many years Rieter has placed the topic of energy savings in the foreground of new developments. The R 40 energy requirements have been reduced steadily over previous machine generations with a parallel increase in pro­ductivity.
INVERTER AND ENERGY-SAVING MOTORS
The integration of inverters combined with the central drive of the R 40 has permitted the elimination of gear boxes. This way, power is transmitted directly without loss. The energy con­sumption has been reduced further by using modern, energy-saving motors. The energy requirements of the new R 40 have been reduced by 7%.
ENERGY-SAVING BEARINGS AND LUBRICATION
A further area for saving energy is in the bearing technology and the use of lubrication. Rieter took advantage of the exper­tise of innovative partners for the R 40. These bearings have the best running properties and are energy-economical. Mod­ern bearing technology, combined with high effi ciency lubri­cants is an important module for reducing energy consumption.
NEW ROTOR GENERATION

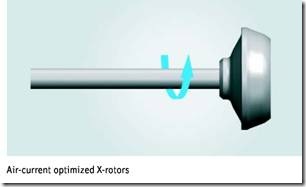

The performance of the new x-rotors have been enhanced con­siderably compared with conventional rotors: Up to 12% high­er speeds and up to 5 watts lower energy consumption, and with better acceleration and braking performance. The key to these developments is extensive computer simulations and an ISO certifi ed fabrication process.

ENERGY EFFICIENT VACUUM SYSTEM
The fan, used to generate the vacuum in a rotor spinning ma­chine, is the second largest energy consumer. The vacuum lev­el is infl uenced by the build up of the fi lter mat. With the R 40, Rieter is the sole manufacturer to follow the route of combat­ing the problem at the source. When the fi lter gets clogged, the vacuum falls. The machine control system starts an eff ective fi l-ter cleaning process automatically as a function of the vacuum level. The set vacuum level is again operative after this clean­ing cycle. The vacuum remains constant with unchanged low energy consumption by its highly effi cient main fan. As an op­tion, the waste in the fi lter boxes can be removed centrally and automatically.

Cooperation with specialists
The R 40 rotor spinning machine combines large numbers of functions and systems. Yarn clearers and slub yarn devices are examples of advanced technology sub-systems. Rieter takes ad­vantage of the knowledge of specialized suppliers for these op­tions.
YARN CLEARER SYSTEMS FOR ALL REQUIREMENTS
Yarn clearers are an absolute necessity for modern rotor spin­ning machines. These monitor the yarn in terms of its quality within predefi ned limits. The Quantum Clearer 2 from Uster with optical or capacitative sensor or the Barco yarn clean­er with optical sensor are available for the R 40. Both can be equipped with the foreign fi ber detection option. The R 40 re­places the recognized yarn faults with yarn-like AEROpiecing piecings of the highest quality.
SLUB YARN DEVICES FROM WELL-KNOWN MANUFACTURERS Current fashions defi ne which yarns can be off ered successfully on the market. The demand for slub yarn remains high. The simplest way to create an eff ect in the yarn is by using a special opening roller. These generate eff ects which are smaller than the rotor diameter, and which are random and not programmable. Working with Amsler and Caipo as partners, Rieter off ers a se­lection of two eff ect yarn devices for the R 40. Soft and hard­ware interfaces are defi ned. Fitting can be carried out easily and secure. The R 40 can be supplied from the factory with a Caipo device for slub yarn, multi-count and multi-twist.
AUTOMATION POTENTIAL FOR PACKAGE REMOVAL
The removal of the produced yarn packages has a steadily in­creasing importance as deliveries increase. The R 40 off ers a universal interface to adapt the central package removal or pal­letizing systems. These systems support productivity and guar­antee independence from operator availability.

CENTRAL TRASH DISPOSAL The R 40 now has a very generously dimensioned fi lter box for the disposal of trash from the spinning process, and separate­ly from the robot. Both fi lter boxes are prepared for connecting up to a central trash disposal system. Specialized suppliers can connect their systems and control the trash disposal centrally. Operating personnel are relieved of this task, enhancing the productivity of the machine. BEARING AND DRIVE TECHNOLOGY Drive technology becomes more signifi cant as the spinning ma­chines get longer. The drives must operate reliably, consume little energy and permit a secure control by the machine control system. Energy saving motors, quality bearings and lubricants lower the energy consumption on the R 40. On these topics, Rieter also guarantees its customers the know-how of interna­tional specialists through close collaboration. AUTOMATED SPINNING MILLS CUBIcan cans contain large quantities of sliver. Transportation units without a driver -AGV’s- can move these to the R 40 auto­matically. The transportation units exchange full CUBIcans for empty ones. The R 40 robots are equipped with an additional module, the ROBOfeed. Using this, the robot takes the sliver from the can, brings it into the spinning position and starts the spinning process.

Automatic set-ups are frequently encountered in package re­moval. Systems collect the packages from the machines for a centralized or decentralized palletizing. Such systems have al­ready been installed in many R 40 spinning mills.
LATER RETROFITTING POSSIBLE
The technical and technological development of rotor spinning strides forward. The needs and requirements of the market change and our customers must be able to react to these. New developments are constructed in such a way that they can be retro-fi tted to older versions if at all possible. These upgrades off er advantages to the customer in terms of productivity, yarn quality and machine service life.


Quality has a name
Rieter has established a name for the rotor yarns from the R 40. the trademark ComfoRo®. Rieter has built partnerships with leading suppliers of the textile chain. Together, experience and know-how have been gathered, covering the entire downstream processing. This know-how is made available to our customers. Yarns are produced and designed for the fi nal product, and thus off er a decisive market advantage. ComfoRo® yarns are con­quering the new markets in Asia. Articles which until now have only been produced exclusively locally with ring-spun yarn can now be replaced with more economically produced ComfoRo® yarns.
UNIQUE YARN QUALITY
ComfoRo® is based on the unique yarn quality of the SC-R spin­ning box and the yarn-like piecings with AEROpiecing technol­ogy. Thanks to XPS this high piecing quality can be achieved easily and safely. ComfoRo® yarn is characterized by the best properties in the downstream processing.
PRE-SET YARN CHARACTERISTICS
The yarn must already be produced with the defi ned required profi le for an optimum result to be achieved in the end prod­uct. Here not only the know-how from Rieter is necessary, but this must flow together with that from the partner in the down­stream processing. Yarn properties and yarn characteristics are optimized by the selection of spinning elements suitable fort the application. The ComfoRo® rotor yarn is optimized for the following process and thus delivers the best results in the fi nal product.
ECONOMICAL ComfoRo® PROCESS
The production costs per kg of yarn play an important role. Sig­nifi cantly fewer machines with maximum productivity, reduced power consumption and space requirements, less operating and maintenance personnel are characteristics of the Rieter ro­tor spinning mill.
ECONOMICS FOR THE DOWNSTREAM PROCESSING
ComfoRo® weaving yarns are characterized by good unwinding behavior, low sizing pick up, and cause low fl uff on high per­formance weaving machines. ComfoRo® knitting yarns are characterized by a defi ned hairiness and low twist. A multiplic­ity of short fi bers guarantees a good unwinding behavior for waxed yarns, and a pleasant soft hand. The hand, the softness can be improved further by using fi nishing technologies. ComfoRo® yarns, and high value products made from them, are enjoying a steadily increasing appreciation in the market­place. Further information on ComfoRo® can be found under http://www.comforo.com/

Production units with low energy consumption
Compact production units such as the Rieter Rotor System of­fer the best opportunity for the best productivity with low en­ergy requirements. Highly productive machines from the blow room through the rotor spinning machine R 40 require fewer machines, use less space, and lower the costs of air condition­ing and illumination.
HIGH PRODUCTIVITY, MINIMAL SPACE REQUIREMENTS
The Rieter Rotor System stands for an appropriate maximum productivity with low space requirements. From the direct proc ess, i.e. card C 60 with an integrated RSB module, or through the classical process with 2 drawing passages for fi ne yarn of the highest quality, the Rieter Rotor System off ers all options. Rieter machines have low energy and space requirements for maximized productivity. The production costs per kilogram of yarn are at a signifi cantly low level.
AIR CONDITIONING
The high production machines in a Rieter spinning mill need less space. Energy saving machines emit less heat into the sur­roundings. With fewer machines in combination with a com­pact building, the costs for air conditioning are signifi cant-
ly lower than for conventional systems. Savings of more than 10% can be achieved.
LONGTERM POWER BRIDGING
Our customers rely increasingly on the system for uninterrupt­ed power supply UPS. These units avoid power interruptions in the spinning mill reliably and maintain high quality. An R 40 system fi tted with UPS, continues to operate without any qual­ity or production variations. Maximum productivity without ad­ditional piecings on the package is guaranteed. The UPS units become amortized within a year and prevail rapidly in critical markets.

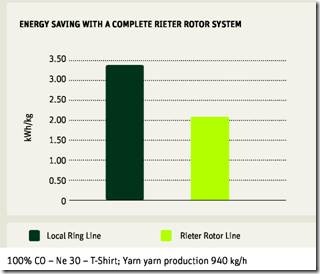

100% CO – Ne 30 – T-Shirt; yarn production 940 kg/h
1 x 11 x 5 x 5 x 12 x
Blowroom Card Drawframe Drawframe R 40 - 440
95 kg/h 850 m/min 850 m/min 125 000 rpm
C 60 SB 20 RSB-D 40
5 250 qm Less space than the local ring line
Rieter Rotor System with highest productivity and lowest required space
Young process with potential for the future
The fi rst commercial rotor spinning machine was exhibited at the ITMA in Basel only 40 years ago. One can rightly speak of a young spinning process. The developments during this pe­riod were fast-paced: rotor speeds and delivery speeds were increased considerably, yarn counts up to Ne 60 are possible, and all types of raw materials can be processed.
CREATIVITY AND EXPERTISE
The R 40 machine control system with the Can-Bus system is more powerful than the fi rst spacecraft. Mechanical compo­nents are made from novel materials, stronger and more dura­ble than ever before.
The standards set for all these advances in development re­main the reliability and controllability. With the R 40, Rieter demonstrates a balanced combination of practical technology conversion and controlled processing.
YESTERDAY’S VISION, TODAY’S REALITY

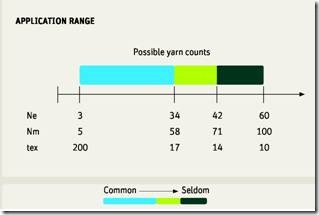

Even just a few years ago it would have been unthinkable to pro­duce viscose at speeds of over 300 m/min on a rotor spinning machine. With the R 40, Rieter demonstrates impressively just how development can break down such boundaries. Today a yarn Ne 16 is running viably at 350 m/min with a rotor speed of 160 000 rpm. Viscose yarns are being spun commercially and successfully on the R 40 up to Ne 60. Novel fi bers such as bam­boo are a regular part of the production program on the R 40.
COOPERATION WITH FIBER MANUFACTURERS
Rieter is working on future-oriented developments together with leading fi ber manufacturers. Fiber, avivage and spinning com­ponent developments are being pursued together. As new fi b­ers become available on the market, Rieter already knows which spinning components and settings are required on the R 40.
TECHNOLOGY PARTS FROM THE LABORATORY TO THE CUSTOMER
The development of new technology parts begins with an idea or a requirement from the marketplace. Small series are tested at Rieters spin center in extensive spinning tests. Working with interested customers, Rieter carries out further spinning trials and supports the development of new products. The tests are, if at all possible, pursued through the various steps in the
downstream processing.

ROOM FOR VISION
Ideas for the next generation begin to mature even during the work involved in implementing a new machine. In close collab­oration with Institutes and Universities new visions are born, discussed, rejected or confi rmed. Basic testing is carried out, redefi ned and refi ned. As a machine manufacturer, Rieter is in­terested in off ering special solutions to its customers, which cannot be obtained from other manufacturers.
TRAINING AND EDUCATION OF PROFESSIONAL STAFF
The productivity of new machines and equipment, and fi nally the quality of the product, depends on the personnel. Operators who are well educated and trained on the machines can use the Rieter rotor equipment more effi ciently. Therefore Rieter puts high value on education and training. Specialists instruct per­sonnel in Europe or directly on-site at the customer with in-mill training. All aspects are taught intensively, from operation through maintenance and problem-solving.
MODERNIZING AND VALUE CONSERVATION
The possibility of adapting new developments to existing Rieter rotor spinning machines provides for reliability, increasing pro­ductivity and enhanced yarn quality in existing equipment also.
OPEN TO IDEAS
Suggestions and wishes from our customers are trend set-
ters for each new development at Rieter. They operate the ma­chines, are in the market, see and recognize trends, and must be able to assert themselves in the marketplace with innova­tions. All Rieter staff involved, such as sales personnel, product managers, service technicians, technologists, encourage con­tact with our customers. In discussions, suggestions and needs are formulated for further development activities. Networking with our customers and their clients, and with major partners from fi ber manufacturing and downstream processing, Rieter has built an innovative team with the common objective of achieving the optimum for all those involved.
