Typical Common Problems face
compressed air users
Water or Moisture in the compressed air system causes air leakages, damages tools, affects processes, spoils product quality and ultimately increases costs. Problems due to unwanted moisture in the compressed air system manifests in form of:
This results in loss of efficiency and material, and increases downtime. Moisture is usually t14' single major cause of uhfidcessary costs to compressed air systems. The cost of drying air is much lower than the damage caused by moiattire.
Typical Pollutants found in
compressed air
· humidity • dust • oil • gases, vapours, fumes • bacteria,
viruses
Source
· Components in the air sucked in by the compressor
· Elements added to the air by the compressor
Thus, clean, dry compressed air is essential for effective working of any pneumatic system.
Appropriate Air Quality gives
· Optimal compressed air, economy • Low running costs
· Low maintenance costs • Reliability • Better product
To achieve quality air, contaminants present in
the compressed air must be removed
The only positive means of removing moisture from compressed air, i.e. completely drying air, is to install an air dryer. Compressed air can be dried by two methods :
Refrigeration : removes moisture by cooling the air.
Adsorption : remove moisture by passing air over desiccants.
When Moisture is Torture!
Dry, Compressed Air for Textiles !!

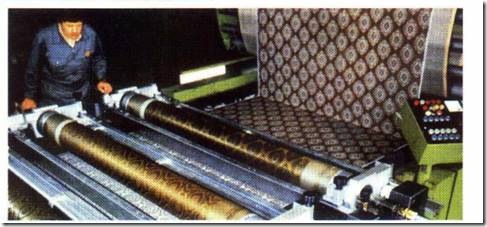

Spinning, Knitting and Hosiery mills use compressed air widely for many processes like blow room, carding, actuation of autoconers, looming, comber, spinning frame, splicers, to name just few. With the machinery being used by the textile industry getting more and more sophisticated, pneumatic controls have become more complicated .
Typically, certain widely used processes like airjet weaving and spinning uses a large amount of compressed air for picking insertion and yarn consolidation. In fact, cost of compressed air forms a significant part of overall production cost. Thus, the quality of compressed air needed for these processes is very important to ensure that there are production losses due to contiminants in the compressed air line In fact, most of the processes require 100% moisture free compressed air.
Moisture Problems:
Moisture (condensation or water vapour) in compressed air stream leads to :
· Corrosion in pipes, cylinders and other components,
· Increased downtime and maintenance costs of pneumatic controls.
· Washing out of the basic lubrication in the cylinders.
· Contamination and damage at points where the compressed air comes directly in contact with sensitive materials.
The delair solution
Generally, most spinning mills use a Heatless type compressed air dryers to dry the compressed air, thereby increasing power usage due to the purging process of reactivation of the dryer. To cater for the process as well as purge air, capacity of the compressor has to be increased to take care of the "extra waste" air needed by the dryer. This, obviously raises first as well as operating cost. Delair engineers after understanding the exact process requirements, recommended that the compressed air be dried at 2 to 5°C PDP
(Pressure dew point) instead of (-) 20°C PDP being done. Thus, a Refrigerated type Air Dryer provided the ideal solution for providing dry compressed air. Thus, delair was able to help many textiles mills to save on production and power costs by eliminating the use of heatless type Air Dryer. The Thuran Spinning Mills Ltd., a group company of the prestigious, 300 crore, Tiruppur based CENTWIN GROUP, has replaced the existing heatless dryer at their Dindugal plant in Tamil Nadu with a Delair Refrigeration type compressed air dryer, FDI 430A series of 250 CFM capacity, therby saving a lot in power costs. The delairs KW rating of the dryer was comparatively very much lower than other manufacturers of dryers thereby saving an additional cost in power.
Rust and scale formation within pipelines. Sluggish and inconsistent operation of air valves and cylinders.
Freezing of exposed lines during cold weather.
delair
Compressed air dryer - FDI Series
Most compressed air dryer users over specify their dewpoint requirement down to (-) 40°C to (-) 60°C due to inadequate information, which consequently lead to high cost dryers in terms of, both, first and operating costs. However, for most common application of general plant air, instrumentation and tools, dry air with pressure dewpoints between 2°C to 10°C or (-) 25°C to (-) 17°C atmospheric dewpoint is required, which is well within the reach of refrigeration dryers.
Refrigeration dryers are low in first cost, operating cost and energy consumption, making them the most cost-effective solution to all such drying needs, requiring pressure dewpoints 2°C to 10°C. The Refrigeration dryer is a self-contained, packaged and fully automatic unit which produces a steady
• output of dry air. There is no regeneration cycle with complex valving, no periodic recharging of chemical and also, oil in the air stream does not affect the performance.
CNC manufactured with power coated finish
Every unit is thoroughly tested for proper performance before leaving to factory
Easy to use :
User friendly simplistic display cabinet style, highly portable, rugged, easy-to-install & maintain design
delair meeting your
Compressed Air Drying needs
delair. in India, has been providing you with quality dryers for compressed air systems since 1988. From time to time, we have been covering dry air stories relevant to compressed air users in our quarterly newsletter, Dryfacts.
However, we felt that we needed to have a more focussed •newsletter addressed only to compressed air drying needs, hence the "delfacts".
This is our inaugural issue and we will be looking forward to your feedback .
SHOWCASING delair AT OUR NEW CORPORATE FACILITY
The display area at our Corporate office showcases the full delair range as well as our total product range. Please schedule a visit to our facility, we will be happy to show around.
